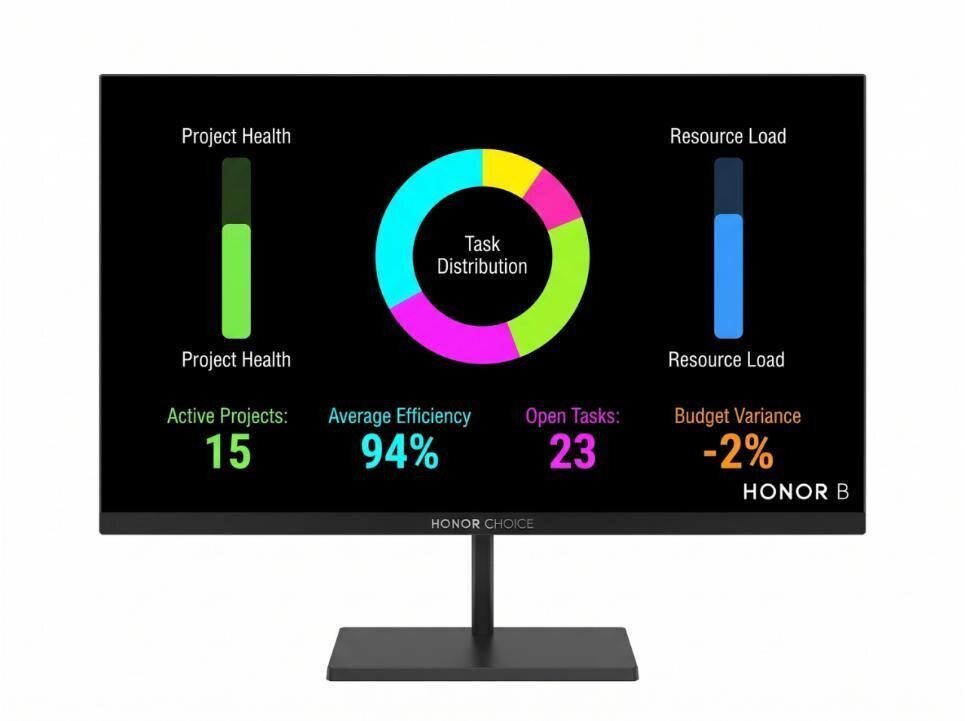

W8315IP03 - view 1
B Series

W8315IP03

Specifications

Interfaces

Ports
HDMI1.4*1, VGA*1

Additional Specifications

Screen size and curvature
31.5"
Backlight
ELED
Panel type
IPS
Aspect ratio
16:9
Resolution
1920*1080
Refresh rate
144Hz
Viewing angle
178°H/178°V
Active display area
698.4Hx392.85Vmm
Minimum brightness
240cd/M²
Typical brightness
300cd/M²
Static contrast ratio
1000:1
Dynamic contrast ratio
1,000,000:1
Color gamut
sRGB CIE 1931Area Ratio99%
Color gamut 2
Adobe RGB CIE 1976Area Ratio75%
Color gamut 3
DCI-P3 CIE 1976Area Ratio75%
Color temperature
6500/7500/9300K
Color depth
16.7M(8bit)
GTG response time
20ms
Power supply type
External
Power supply
12V/4A
Standby power consumption
≤0.5W
Low blue light
Support
Overdrive
Support
Adaptive Sync
Support
Flicker-free
Support
MPRT
CVTMain Board NO Support/GRMain BoardSupport
HDCP
Support
Adaptive picture
Support
Auto source switch
Support
Virtual crosshair
Support
Tilt
-5º~15º
Quick release
Support
Product Color
BLACK
Net Weight
6.02Kg±5%
Gross Weight
7.64Kg±5%
Dimensions (without Stand)
715.1*422.8*49.3mm±3mm
Dimensions (with Stand)
715.1*523*184.6mm±3mm
Carton Dimensions
796*116*515mm±3mm
20' GP (Loading Qty)
440unit
40' HQ (Loading Qty)
1008unit
84 VESA
75mm *75mm
User Manual
*1
Warranty Card
*1
AC Adapter
*1
Power Cord
*1
HDMI Cable
*1
Storage Temperature
-20℃-70℃
Operating Temperature
0ºC~45ºC
Operating Altitude
≤5000m
